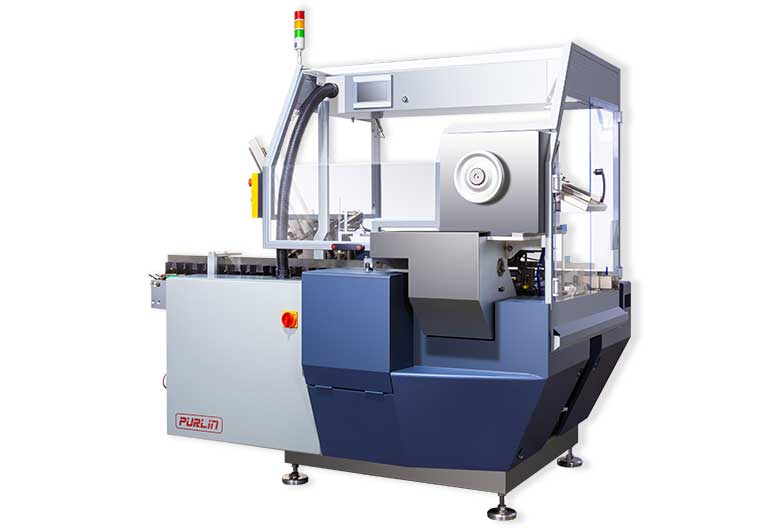

1.Technical parameters of cartoning machine
Project | Specific parameters | Notes |
High production speed | 140 boxes/min | Related to the material |
Carton specifications | Length: 50 -260mm, width 15- 130mm, height 12-80mm | Width + height ≤ 160mm |
Specification of the manual | Length 120-200mm width 90-240mm | |
Power supply | AC220V 50/60HZ | |
Power | 2. 5KW | |
Atmospheric pressure | 0.5-0.7Mpa | |
Air consumption | 50L/min | |
Dimensions | 1894mm(L)×1766mm(W)×2176mm(H) | |
Weight | 2300KG |
Unboxing part
2. Carton feeding
1. Manually put the carton code on the carton silo. Note: Depending on the type of carton, the method of putting it is different.
2. The box is partially driven
The carton (carton is in a flattened state) in the carton magazine is sucked out by the suction cup and sent to the card slot of the box feeding chain, a stop is arranged on the route through which the carton passes, and the side of the carton is side-blocked when the carton passes.
3. The stroke of the opening blade can be adjusted by adjusting the position of the connecting rod. Once the blades are fully positioned, make sure that the removable optional blades can easily open the tray.
4. The product into the box guide mechanism
5. Part of the lid mechanism will fold the ears into the left and right guide rails, and then close the lid. Before closing the lid, the mechanism will bend the tab of the carton first, and then there is a push plate to push the lid to bend, so that the tongue is inserted into the box and the lock is fastened.
6. Box molding
The closing action is a critical action, and the quality of the completion has a lot to do with the structure of the carton and the accuracy of the machine adjustment.
