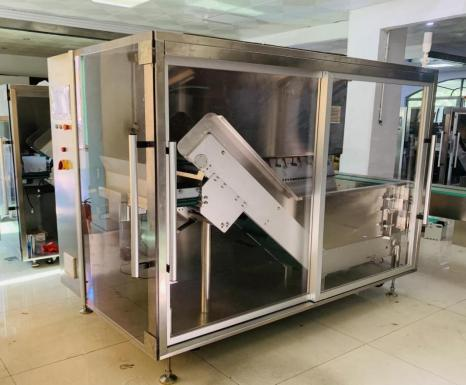

Full servo bag unpacking machine PLLD-30A
1. Technical parameters:
| Project | Specific parameters | Note |
| Highest speed | 300/min | It is related to the size of the material |
| Bag specification | Length≤ 180mm; Width ≤ 100mm | |
| Total power | 5.5kW | |
| Power supply | AC220V 50/60Hz | |
| Dimensions | 3600 ( L) × 1 2 0 0 (W) × 1800 (H) | |
| Total weight | 1000Kg |

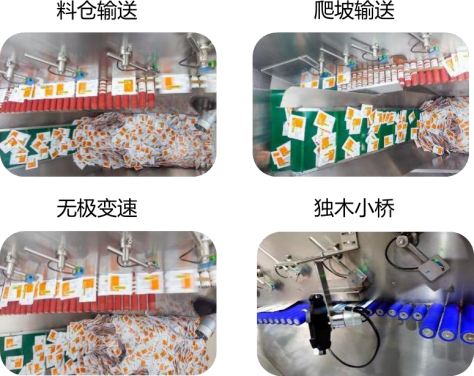

2. Working principle:
The automatic bag unscrambler can be used alone in production or docked with the cartoning machine to complete the entire finishing process of irregular accumulation of materials from concentration to dispersion to sequential placement. After the irregularly stacked materials are poured into the storage silo, the conveyor belt of the silo moves to convey the materials to the low-speed rollers. The equipment feeds the materials out of the bag unscrambler one by one through the operation of low, medium and high speed rollers. The material sent out enters the post-section conveying according to the form or sequential or stacking according to the packaging needs to complete the bagging of the next process.
3. Performance characteristics:
Integrated design of material storage, feeding and bag arrangement, simple structure, compact and generous appearance; Integral sealing, safe operation. Integrated large-capacity storage bin, easy to feed. The bottom of the silo is equipped with a conveyor belt, which is convenient for loading and avoids material residue. The dispensing conveyor roller is driven by 11 sets of servo motors, and the speed is adjusted through the feedback signal of the photoelectric sensor, which is precise in control and fast in bag unraveling. Fully automatic arrangement is realized through servo control, and the multi-servo system realizes the orderly stacking of material rules, and the process is stable, and the whole process can be dispersed, sequential and stacked, and the process does not require manual intervention. A variety of ways can be combined, the number of bag unscrambler can be increased or decreased according to the speed, and the single machine can also complete the finishing process. Multi-servo system control, high-speed and accurate, easy to operate, high degree of automation. The body of the equipment is made of 304 stainless steel, and the plexiglass cover meets the GMP standard, which is safe and hygienic.

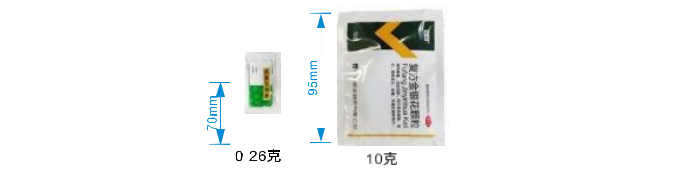

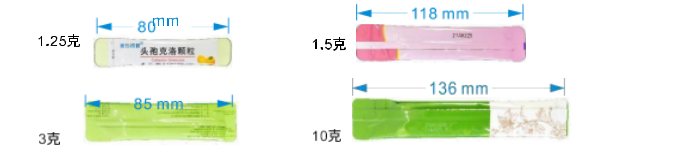

The disorderly bag is suitable for the following products:

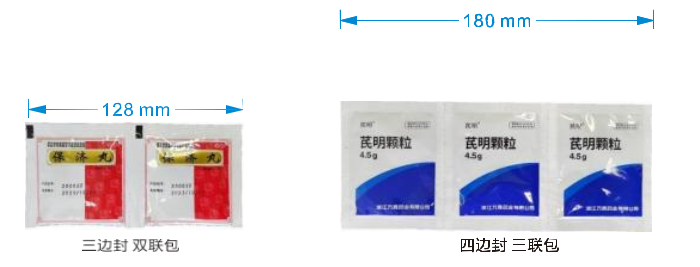

Three-sided seal:
Four-sided seal:
Back Seal/Pack:
Package:
